1308661 | Phoenix Contact

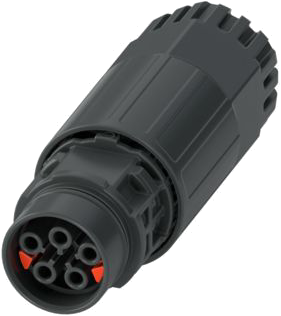

Jack, 5 pole, screw connection, Duo-Unlock lock, straight, 1308661
Unit Price (€ / pc.)
13.5541 € *
Available: 0 pcs.
Available in 10 days: 645 pcs.
Leadtime: 1 Week **
Circular connector, 1308661, Phoenix Contact
Coupler connector, Range of articles: PRC 20, Color: black, Number of positions: 5, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², Rated voltage: 400 V, Rated current: 20 A, Connection method: screw connection, Contact connection type: Socket, min. cable diameter: 8 mm, max. cable diameter: 14 mm, Setting option for release: 1. with a tool or 2. by hand, Scope: AC.
Features
- More space on the device front with current transmission up to 20 A in a minimum amount of space
- Duo-Unlock technology for greater flexibility during installation and maintenance
- Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
- Mechanical and color coding for quick and error-free startup
Technical specifications
| Ausführung | Buchse | |
| Gehäusematerial | EPDM/PPE/CuZn | |
| Kontaktanschluss | Schraubanschluss | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Verriegelung | Duo-Unlock-Verriegelung |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
