1313281 | Phoenix Contact

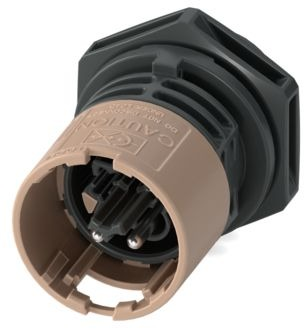

Panel plug, 2 pole, screw connection, Duo-Unlock lock, straight, 1313281
Unit Price (€ / pc.)
10.4363 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Circular connector, 1313281, Phoenix Contact
Device connector front mounting, Range of articles: PRC 20, Color: black, Number of positions: 2, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², Rated voltage: 400 V, Rated current: 20 A, Connection method: screw connection, Contact connection type: pin, Setting option for release: 1. with a tool or 2. by hand, Scope: SELV.
Features
- More space on the device front with current transmission up to 20 A in a minimum amount of space
- Duo-Unlock technology for greater flexibility during installation and maintenance
- Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
- Mechanical and color coding for quick and error-free startup
Technical specifications
| Version | plug | |
| Contact connection | screw connection | |
| Cable cross-section | 0.5-2.5 mm² | |
| Assembly | front mounting | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Type of locking | Duo-Unlock lock |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
