1403737 | Phoenix Contact
Panel feed through, 4 pole + PE, stranded wires 0.5 m, screw locking, straight, 1403737
Unit Price (€ / pc.)
32.0229 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

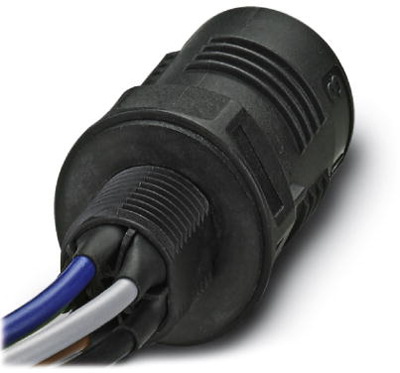

Panel feed-through, 1403737, Phoenix Contact
Panel feed-through, QUICKON connection, number of poles: 4+PE, 1-2.5 mm², 690 V, 20 A, black, without QUICKON nut, cable diameter range: 6-10 mm, mounting thread: M20, single cores (welded), 2.5 mm², cores cut smooth, cable length: 0.5 m
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
| Ausführung | Stift | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kontaktanschluss | Litzen 0,5 m | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Montage | Vorderwandmontage M21 | |
| Orientierung | gerade | |
| Polzahl | 4-polig + PE | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
