1410656 | Phoenix Contact

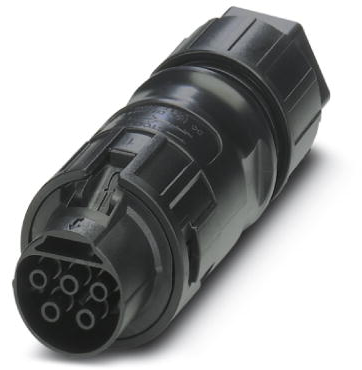

Socket, 5 pole, screw connection, snap-in, straight, 1410656
Unit Price (€ / pc.)
36.6758 € *
Available: 0 pcs.
Available in 10 days: 18,403 pcs.
Leadtime: 1 Week **
Coupler connector, 1410656, Phoenix Contact
Installation connector, Coupler connector, type: Straight, housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Socket, min. cable diameter: 8 mm, max. cable diameter: 21 mm.
Features
- Up to 75% smaller in size than industrial connectors with the same rating
- Locking mechanism can be unlocked manually or using a tool
- Ideal for indoor and outdoor use due to weatherproof materials
- Pollution degree: 2
- Contact material: Cu alloy
Technical specifications
| Version | socket | |
| Additional parts | equipped | |
| Shell Material | PPE | |
| Cable diameter | 8 to 21 mm | |
| Contact connection | screw connection | |
| contact surface | silver-plated | |
| Cable cross-section | 1.5-6 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | snap-in |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
