1411433 | Phoenix Contact
Panel feed through, 4 pole + PE, IDC connection, screw locking, straight, 1411433
Unit Price (€ / pc.)
41.8404 € *
Available: 0 pcs.
Available in 10 days: 11 pcs.
Leadtime: 1 Week **

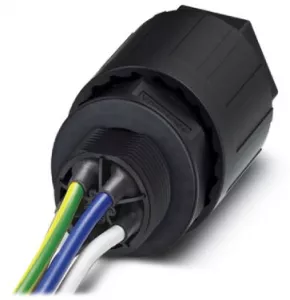

Panel feed-through, 1411433, Phoenix Contact
QUICKON panel feed-through, black, 4+PE-pole, 1.0-2.5 mm²/690 V/20 A, with QUICKON nut, for cable diameter of 9-16 mm, with push-in spring-cage connection.
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
| Ausführung | Stift | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kabeldurchmesser | 9 bis 16 mm | |
| Kontaktanschluss | Schneidklemmanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Montage | Vorderwandmontage M21 | |
| Orientierung | gerade | |
| Polzahl | 4-polig + PE | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
