1414679 | Phoenix Contact
Panel feed through, 3 pole + PE, stranded wires 1 m, screw locking, straight, 1414679
Unit Price (€ / pc.)
32.6179 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

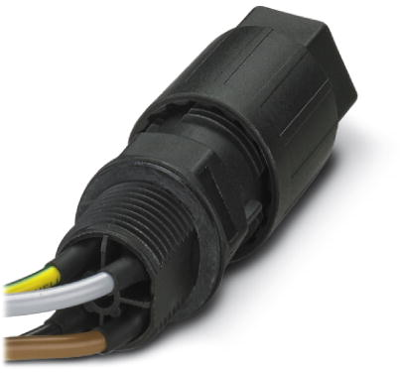

Panel feed-through, 1414679, Phoenix Contact
Panel feed-through, QUICKON connection, number of positions: 3+PE, 0.5- 1.5 mm², 690 V, 17.5 A, black, with QUICKON nut, cable diameter range: 10 mm- 13 mm, assembly thread: M20, Single wires, 1.5 mm², cable length: 1 m
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Convenient: quick and easy assembly without special tools
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Technical specifications
Version | pin | |
Additional parts | equipped | |
Shell Material | PA | |
Cable diameter | 10 to 13 mm | |
Contact connection | stranded wires 1 m | |
contact surface | silver-plated | |
Cable cross-section | 0.5-1.5 mm² | |
Assembly | front wall mounting M21 | |
Orientation | straight | |
Pin number | 3 pole + PE | |
Type of locking | screw locking |
Download
Logistics
Country of origin | PL |
Customs tariff number | 85444290 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
