1414706 | Phoenix Contact
Connector, 2 pole + PE, IDC connection, screw locking, straight, 1414706
Unit Price (€ / pc.)
18.1237 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

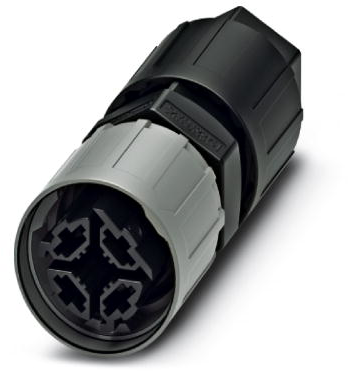

Sensor-actuator connector, 1414706, Phoenix Contact
Connector, QUICKON connection, number of positions: 2+PE, 0.5 mm² - 1.5 mm², 690 V, 17.5 A, black, with QUICKON nut, external cable diameter: 10 mm - 13 mm.
Features
- Fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
- Easy maintenance - the connector enables fast device replacement and simplify startup thanks to pre-assembled cables
- Overvoltage category: III
- Pollution degree: 3
Technical specifications
| Ausführung | Buchse | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kabeldurchmesser | 10 bis 13 mm | |
| Kontaktanschluss | Schneidklemmanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 2-polig + PE | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
