1423982 | Phoenix Contact
Panel feed through, 3 pole + PE, IDC connection, screw locking, straight, 1423982
Unit Price (€ / pc.)
32.1181 € *
Available: 0 pcs.
Available in 10 days: 4 pcs.
Leadtime: 1 Week **

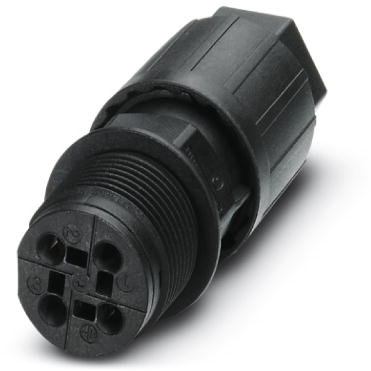

Panel feed-through, 1423982, Phoenix Contact
Panel feed-through, QUICKON connection, number of positions: 3+PE, 1-2.5 mm², 400 V, 20 A, black, with QUICKON nut, external cable diameter: 9-14 mm, assembly thread: M25, Push-in connection, 2.5 mm²
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
| Ausführung | Stift | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kabeldurchmesser | 9 bis 14 mm | |
| Kontaktanschluss | Schneidklemmanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Montage | Vorderwandmontage M21 | |
| Orientierung | gerade | |
| Polzahl | 3-polig + PE | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
