1424041 | Phoenix Contact

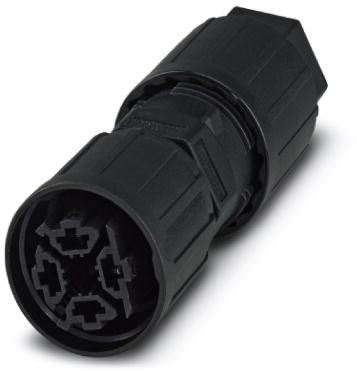

Connector, 3 pole + PE, IDC connection, screw locking, straight, 1424041
Unit Price (€ / pc.)
22.9789 € *
Available: 0 pcs.
Available in 10 days: 22 pcs.
Leadtime: 1 Week **
Sensor-actuator connector, 1424041, Phoenix Contact
Connector, QUICKON connection, number of positions: 3+PE, 1 mm² - 2.5 mm², 690 V, 20 A, black, with QUICKON nut, external cable diameter: 6 mm - 10 mm.
Features
- Fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
- Easy maintenance - the connector enables fast device replacement and simplify startup thanks to pre-assembled cables
- Overvoltage category: III
- Pollution degree: 3
Technical specifications
| Ausführung | Buchse | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kabeldurchmesser | 6 bis 10 mm | |
| Kontaktanschluss | Schneidklemmanschluss | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 3-polig + PE | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
