1571429 | Phoenix Contact
Plug, 1 pole, threaded connection, straight, 1571429
Order No.: 64P3251
EAN: 4067923059849
MPN:
1571429
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Available in 10 days: 137 pcs.
Leadtime: 1 Week **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.3808 €
50 pcs.
0.3332 €
100 pcs.
0.2785 €
500 pcs.
0.2083 €
*incl. VAT plus shipping costs
**Subject to prior sale

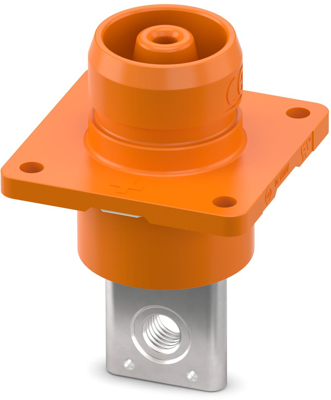

Connector, 1571429, Phoenix Contact
Connector, color: orange, number of positions: 1, min. conductor cross section: 95 mm², max. conductor cross section: 120 mm², rated voltage: 1500, rated current: 350 A, Connection method: Thread connection, Contact connection type: Pin.
Features
- Patented design, with 3 proofs and one rotation
- Safety lock
- 360° free rotation and flexible wiring
- Foolproof mechanism installed
- Touch-proof
- Mismatching and short circuit proof
Technical specifications
| Version | Stecker | |
| Shell Material | PA | |
| Contact connection | Gewindeanschluss | |
| contact surface | vernickelt/versilbert | |
| Cable cross-section | 95-120 mm² | |
| Orientation | gerade | |
| Pin number | 1-polig |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
