1605823 | Phoenix Contact
Socket, 6 pole, crimp connection, screw locking, straight, 1605823
Unit Price (€ / pc.)
133.9702 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

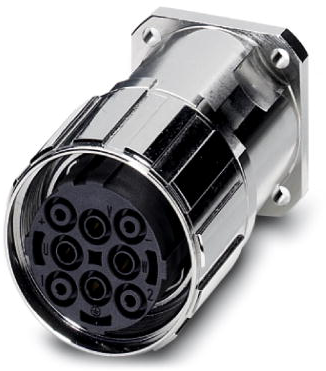

Device connector, front mounting, 1605823, Phoenix Contact

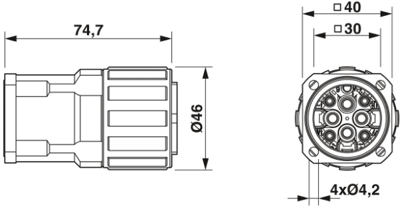

Panel connector, front panel with knurled nut, straight, screw locking, M40, number of poles: 2+3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø4.2, shielded: yes, flange dimension: 40 mm x 40 mm, cable diameter range: 0 mm...0 mm
Technical specifications
| Ausführung | Buchse | |
| Gehäusematerial | Kupferlegierung | |
| Kontaktanschluss | Crimpanschluss | |
| Montage | Frontmontage | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
