1607532 | Phoenix Contact
Socket, 6 pole, crimp connection, screw locking, angled, 1607532
Unit Price (€ / pc.)
159.0078 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

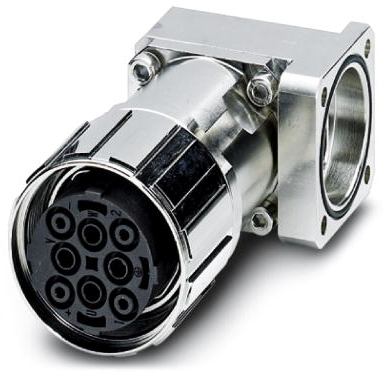

Device connector, front mounting, 1607532, Phoenix Contact

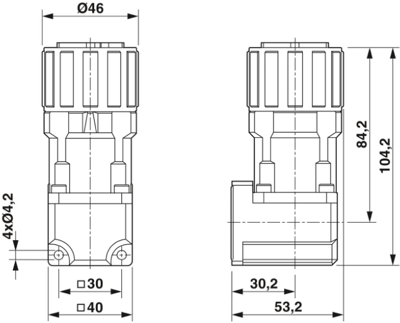

Panel connector, front panel with knurled nut, angled fixed, screw locking, M40, number of poles: 2+3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø4.2, shielded: yes, flange dimension: 40 mm x 40 mm
Technical specifications
| Version | Buchse | |
| Shell Material | Kupferlegierung | |
| Contact connection | Crimpanschluss | |
| Assembly | Frontmontage | |
| Orientation | abgewinkelt | |
| Pin number | 6-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
