1607746 | Phoenix Contact

Plug, 8 pole, crimp connection, screw locking, straight, 1607746

Order No.: 62P4723
EAN: 4046356274456
MPN:
1607746
ST-7EP1N8AW400S
Series: ST

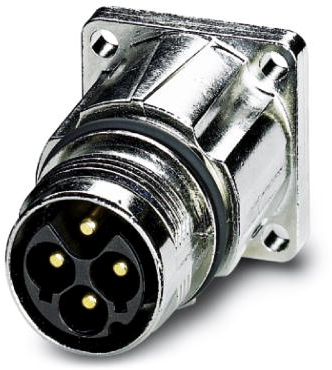

1607746 Phoenix Contact Other Circular Connectors Image 1
1607746 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.9230 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.9230 €

Device connector, front mounting, 1607746, Phoenix Contact

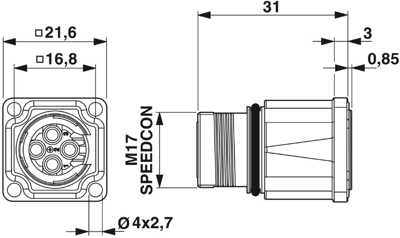

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 7+PE, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Ausführung Stecker
Gehäusematerial Metall
Kontaktanschluss Crimpanschluss
Montage Frontmontage
Orientierung gerade
Polzahl 8-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
