1613567 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, angled, 1613567

Order No.: 62P4664
EAN: 4046356401173
MPN:
1613567
ST-6EP1N8AAD00S
Series: ST
1613567 Phoenix Contact Other Circular Connectors Image 1
1613567 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.4196 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
22.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.4196 €

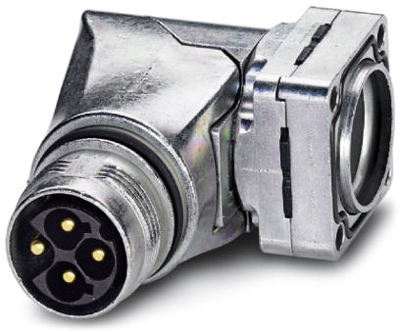

Device connector, front mounting, 1613567, Phoenix Contact

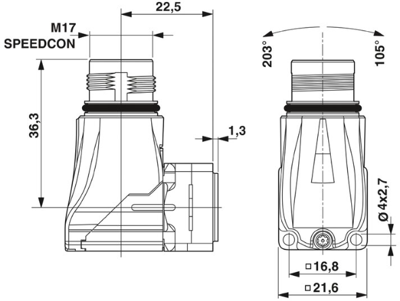

Panel connector, front panel, angled rotatable, SPEEDCON locking, M17, no. of poles: 6+PE, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Version Stecker
Shell Material Kupferlegierung
Contact connection Crimpanschluss
Assembly Zentralbefestigung
Orientation abgewinkelt
Pin number 6-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
