1613569 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, straight, 1613569

Order No.: 62P4669
EAN: 4046356401197
MPN:
1613569
ST-6EP1N8AW400S
Series: ST
1613569 Phoenix Contact Other Circular Connectors Image 1
1613569 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.5541 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
13.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.5541 €

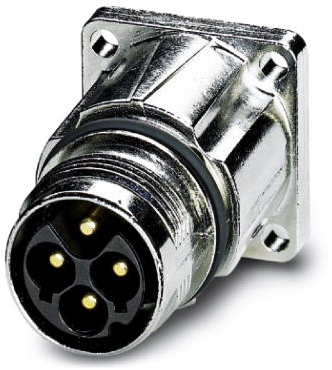

Device connector, front mounting, 1613569, Phoenix Contact

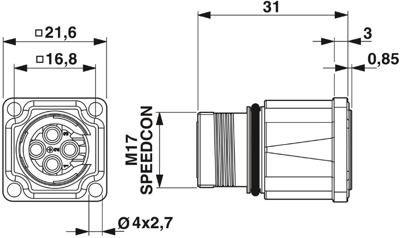

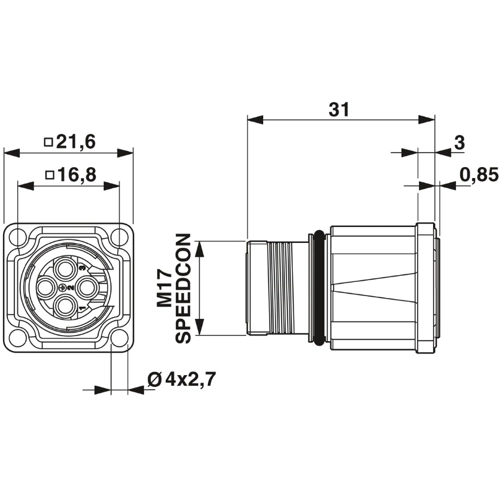

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 6+PE, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Ausführung Stecker
Gehäusematerial Metall
Kontaktanschluss Crimpanschluss
Montage Zentralbefestigung
Orientierung gerade
Polzahl 6-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
