1613589 | Phoenix Contact

Socket, 6 pole, crimp connection, screw locking, straight, 1613589

Order No.: 62P4699
EAN: 4046356401371
MPN:
1613589
ST-6ES1N8AWQ00S
Series: ST

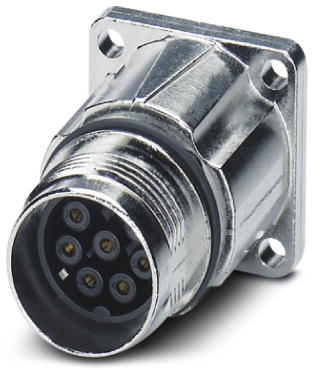

1613589 Phoenix Contact Other Circular Connectors Image 1
1613589 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.5541 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
13.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.5541 €

Device connector, front mounting, 1613589, Phoenix Contact

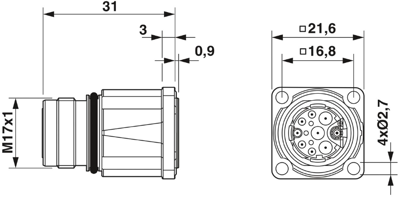

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 6+PE, contact type: female, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Version Buchse
Shell Material Kupferlegierung
Contact connection Crimpanschluss
Assembly Zentralbefestigung
Orientation gerade
Pin number 6-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
