1618127 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, angled, 1618127

Order No.: 62P4610
EAN: 4046356580755
MPN:
1618127
ST-5EP1N8AAE00S
Series: ST

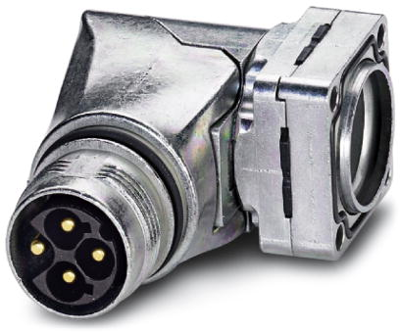

1618127 Phoenix Contact Other Circular Connectors Image 1

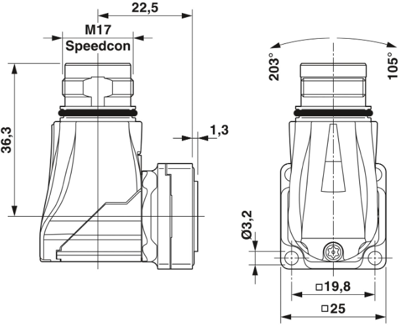

1618127 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.7286 € *
Available: 0 pcs.
Available in 10 days: 32 pcs.
Leadtime: 2 Weeks **
Total Price:
23.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
23.7286 €

Device connector, front mounting, 1618127, Phoenix Contact

Panel connector, front panel, angled rotatable, SPEEDCON locking, M17, no. of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 25 mm x 25 mm

Technical specifications
Version Stecker
Shell Material Kupferlegierung
Contact connection Crimpanschluss
Assembly Panelmontage
Orientation abgewinkelt
Pin number 6-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
