1620657 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, angled, 1620657

Order No.: 62P4079
EAN: 4046356839969
MPN:
1620657
SF-5EP1N8AA500
Series: SF

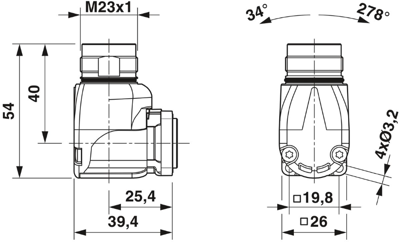

1620657 Phoenix Contact Other Circular Connectors Image 1

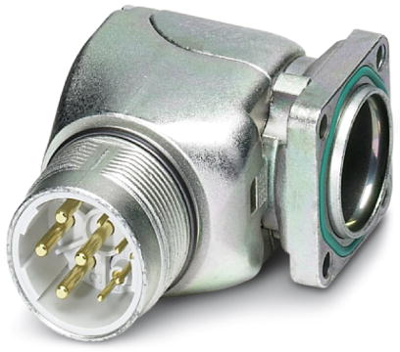

1620657 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
40.0078 € *
Available: 0 pcs.
Available in 10 days: 9 pcs.
Leadtime: 2 Weeks **
Total Price:
40.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
40.0078 €

Device connector, front mounting, 1620657, Phoenix Contact

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M23, no. of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm, compatible to mating connectors with SPEEDCON or M23 standard knurled nut

Technical specifications
Version Stecker
Shell Material Metall
Contact connection Crimpanschluss
Cable cross-section 0,14-0,25 mm²
Assembly Panelmontage
Orientation abgewinkelt
Pin number 6-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
