1624035 | Phoenix Contact

Socket, 17 pole, crimp connection, screw locking, straight, 1624035

Order No.: 62P0487
EAN: 4055626227634
MPN:
1624035
CA-17S1N8A6L00
Series: CA

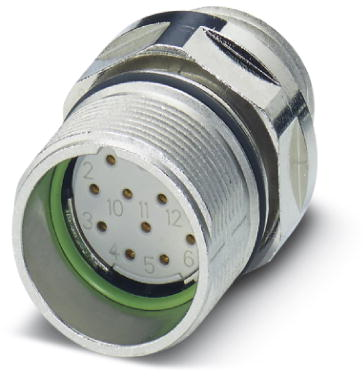

1624035 Phoenix Contact Other Circular Connectors Image 1
1624035 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.4767 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
28.4767 €

Device connector, front mounting, 1624035, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, number of poles: 17, contact type: female, crimp connection, axial sealing, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Ausführung Buchse
Gehäusematerial Kupferlegierung
Kontaktanschluss Crimpanschluss
Leiterquerschnitt 1,0-2,5 mm²
Montage Zentralbefestigung
Orientierung gerade
Polzahl 17-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
