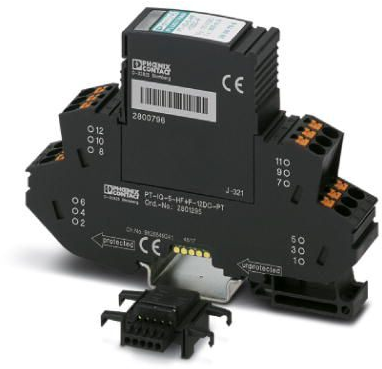

2801295 | Phoenix Contact
Surge protection device, 600 mA, 12 VDC, 2801295
Unit Price (€ / pc.)
337.8172 € *
Available: 0 pcs.
Available in 10 days: 25 pcs.
Leadtime: 2 Weeks **
Surge protection device, 2801295, Phoenix Contact
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for five signal wires. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbps).
Features
- Predictive monitoring with 3-stage LED display
- Install quickly and error-free with DIN rail connectors
- Maximum ease of maintenance, thanks to the 2-piece design
- Maximum protection for MCR applications with high discharge capacity
Technical specifications
| Version | Überspannungsschutzgerät | |
| Rated current | 600 mA | |
| Voltage | 12 VDC | |
| Connection | Steckbar | |
| Assembly | DIN-Schiene |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
