2881007 | Phoenix Contact

Surge protection device, 10 A, 3.3 VDC, 2881007

Order No.: 64P5600
EAN: 4046356151900
MPN:
2881007
DT-LAN-CAT.6+
Series: DT-LAN
Phoenix Contact

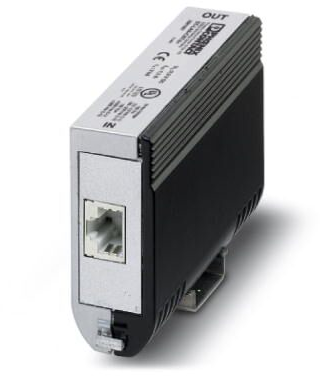

2881007 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
181.7487 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
181.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
181.7487 €

Surge protection device, 2881007, Phoenix Contact

Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.

Features

  • Can be used in applications up to 10 Gbps with adapted protective circuit
  • Easy network integration via RJ45 Yescks
  • Can be installed in a control cabinet by removing the ground connection adapter
Technical specifications
Connection RJ45
Version surge protection device
Assembly DIN rail
Rated current 10 A
Voltage 3.3 VDC
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
