2905341 | Phoenix Contact

Surge arrester, 63 A, 240 VAC, 2905341

Order No.: 64P6269
EAN: 4046356948043
MPN:
2905341
VAL-SEC-T2-1S-350
Series: VAL
Phoenix Contact
2905341 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
164.5413 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
164.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
164.5413 €

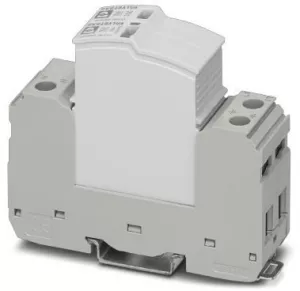

Surge arrester, 2905341, Phoenix Contact

Plug-in surge arrester, in accordance with Type 2/Class II, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE).

Features

  • Easy to maintain due to consistently pluggable protection modules
  • Excellent level of information provided by mechanical/visual status indicator and remote indication contact
  • More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
  • Low voltage protection level at high continuous voltage for optimum protection of the subsequent installation
  • Varistor arrester with a low leakage current
Technical specifications
Connection screw connection
Version surge arrester
Assembly DIN rail
Rated current 63 A
Voltage 240 VAC
Logistics
Country of origin DE
Customs tariff number 85363030
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
