2907832 | Phoenix Contact
Surge protection plug, 600 mA, 24 VDC, 2907832
Unit Price (€ / pc.)
102.8041 € *
Available: 0 pcs.
Available in 10 days: 111 pcs.
Leadtime: 1 Week **

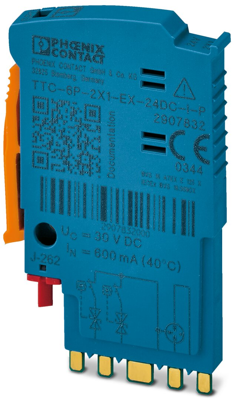

Surge protection plug, 2907832, Phoenix Contact
Surge protection plug with integrated status indicator for one 2-wire Ex i signal circuit with common reference potential. Nominal voltage: 24 V DC.
Features
- Continuous monitoring of protective devices
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
| Anschluss | Steckbar | |
| Ausführung | Überspannungsschutzstecker | |
| Nennstrom | 600 mA | |
| Spannung | 24 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85363010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
