2908198 | Phoenix Contact

Surge protection device, 600 mA, 12 VDC, 2908198

Order No.: 64P6054
EAN: 4055626282824
MPN:
2908198
TTC-6P-1X2-F-12DC-PT-I
Series: TTC
Phoenix Contact
2908198 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
142.2407 € *
Available: 0 pcs.
Available in 10 days: 20 pcs.
Leadtime: 2 Weeks **
Total Price:
142.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
142.2407 €

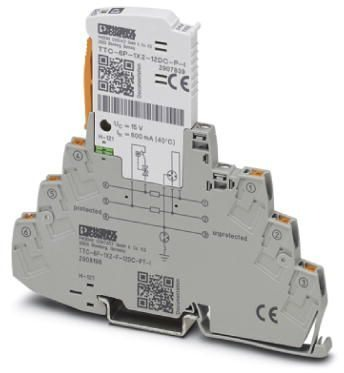

Surge protection device, 2908198, Phoenix Contact

Surge protection, consisting of protective plug and base element, with integrated status indicator for a 2-wire floating signal circuit. Indirect grounding via gas-filled surge arrester.

Features

  • Continuous monitoring of protective devices
  • Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
  • The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Connection screw connection
Version surge protection device
Assembly DIN rail
Rated current 600 mA
Voltage 12 VDC
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
