2909635 | Phoenix Contact

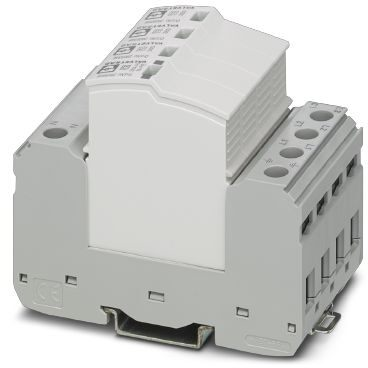

Surge arrester, 2909635, Phoenix Contact

Pluggable surge protective device, in accordance with Type 2/Class II, for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE), with remote indication contact. With 40 kA discharge capacity in accordance with the requirements of VDE 0100-534:2016-10 relating to SPDs at the system feed point.

Features

• Easy to maintain due to consistently pluggable protection modules
• Excellent level of information provided by mechanical/visual status indicator
• More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
