2920230 | Phoenix Contact
Surge arrester, 80 A, 240-415 VAC, 2920230
Unit Price (€ / pc.)
250.9234 € *
Available: 0 pcs.
Available in 10 days: 3 pcs.
Leadtime: 1 Week **

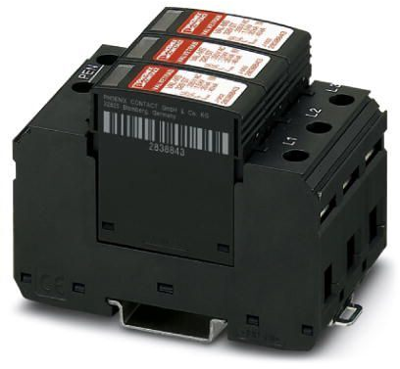

Surge arrester, 2920230, Phoenix Contact
Surge arrester for 4-conductor power supply systems (L1, L2, L3, PEN), consisting of a base element and protective connectors, for mounting on NS 35.
Features
- Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
- Easy testing and insulation measurement, thanks to pluggable protection modules
- Wide range of applications due to various nominal voltages
- High degree of modularity provides individual solutions for every application
Technical specifications
| Connection | screw connection | |
| Version | surge arrester | |
| Assembly | DIN rail | |
| Rated current | 80 A | |
| Voltage | 240-415 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
