2230000 | Phoenix Contact

PHOENIX CO 2230000

Order No.: 64P0840
EAN: 4055626381336
MPN:
2230000
ECS-B-122X169-L-UV1-V
Series: ECS

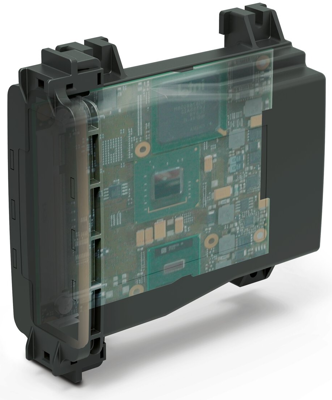

2230000 Phoenix Contact Panel Mount Enclosures Image 1

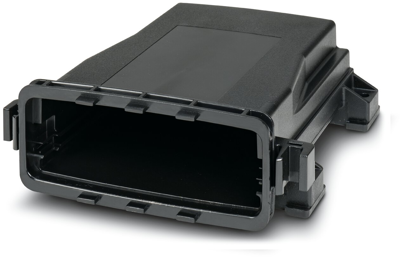

2230000 Phoenix Contact Panel Mount Enclosures Image 2
2230000 Phoenix Contact Panel Mount Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
44.3394 € *
Available: 0 pcs.
Available in 10 days: 277 pcs.
Leadtime: 1 Week **
Total Price:
44.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
44.3394 €

Electronic housing, 2230000, Phoenix Contact

Snap-in locking vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate, Color: Black (9005), Width: 170 mm, Height: 176 mm, Depth: 64 mm.

Features

  • Suitable for outdoor/indoor applications
  • Integrated tamper protection
  • Proven PCB connection technology
  • Optional accessories for wall and mast mounting
  • Effective protection of electronics against thermal and mechanical influences
  • Integrated pressure compensation membrane for fluctuating ambient pressures
  • Housing design supports the installation of a range of PCB thicknesses for high application diversity
Technical specifications
Breite 170 mm
Farbe schwarz
Höhe 176 mm
Material Kunststoff
Schutzart (IP) IP66/IP67
Logistics
Ursprungsland US
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
