1038739 | Phoenix Contact

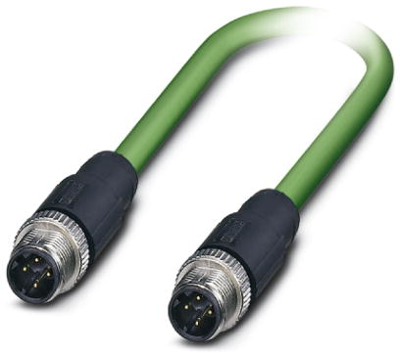

Network cable, M12-plug, straight to M12-plug, straight, Cat 5, SF/TQ, PUR, 10 m, green, 1038739
Unit Price (€ / pc.)
101.4951 € *
Available: 0 pcs.
Leadtime: On Request **
Network cable, 1038739, Phoenix Contact
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Plug straight M12, coding: D / IP67, on Plug straight M12, coding: D / IP67, cable length: 10 m.
Technical specifications
| Anschluss (1) | M12-Stecker, gerade | |
| Anschluss (2) | M12-Stecker, gerade | |
| Ausführung | Netzwerkkabel | |
| AWG-Leiterquerschnitt | AWG 22-7 | |
| Farbe | grün | |
| Halogenfrei | Yes | |
| Kabel | SF/TQ | |
| Kabellänge | 10 m | |
| Kategorie | Cat 5 | |
| Material | PUR | |
| Pinbelegung | 1:1 | |
| Rasthebelschutz vorhanden | No | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
