1038761 | Phoenix Contact

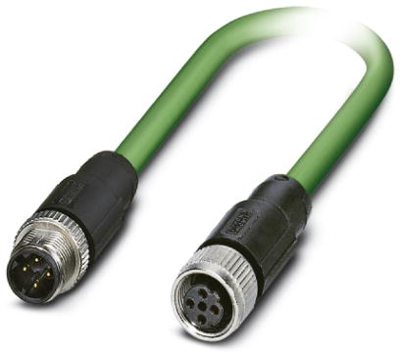

Network cable, M12-plug, straight to M12 socket, straight, Cat 5, SF/TQ, PUR, 1 m, green, 1038761
Unit Price (€ / pc.)
48.4806 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Network cable, 1038761, Phoenix Contact
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Plug straight M12, coding: D / IP67, on Socket straight M12, coding: D / IP67, cable length: 1 m.
Technical specifications
| Version | Netzwerkkabel | |
| Connection (1) | M12-Stecker, gerade | |
| Connection (2) | M12-Buchse, gerade | |
| Cable length | 1 m | |
| Colour | grün | |
| Category | Cat 5 | |
| Cable type | SF/TQ | |
| AWG cross-section | AWG 22-7 | |
| Material | PUR | |
| Halogen free | Yes | |
| Pin configuration | 1:1 | |
| Detent lever protection available | No | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
