1407546 | Phoenix Contact

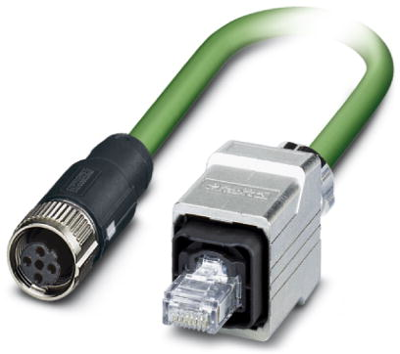

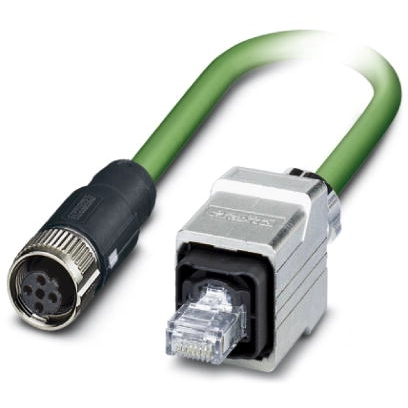

Network cable, RJ45 plug, straight to M12 socket, straight, Cat 5, SF/TQ, PVC, 5 m, green, 1407546
Unit Price (€ / pc.)
74.375 € *
Available: 0 pcs.
Leadtime: On Request **
Network cable, 1407546, Phoenix Contact
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Socket straight M12, coding: D / IP67, on Plug straight RJ45 Push Pull / IP67, cable length: 5 m.
Technical specifications
| Anschluss (1) | RJ45-Stecker, gerade | |
| Anschluss (2) | M12-Buchse, gerade | |
| Ausführung | Netzwerkkabel | |
| AWG-Leiterquerschnitt | AWG 22-7 | |
| Farbe | grün | |
| Kabel | SF/TQ | |
| Kabellänge | 5 m | |
| Kategorie | Cat 5 | |
| Material | PVC | |
| Rasthebelschutz vorhanden | Yes | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444210 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
