1408963 | Phoenix Contact
Network cable, RJ45 plug, straight to RJ45 plug, straight, Cat 5, SF/UTP, PUR, 10 m, blue, 1408963
Unit Price (€ / pc.)
104.7795 € *
Available: 0 pcs.
Leadtime: On Request **

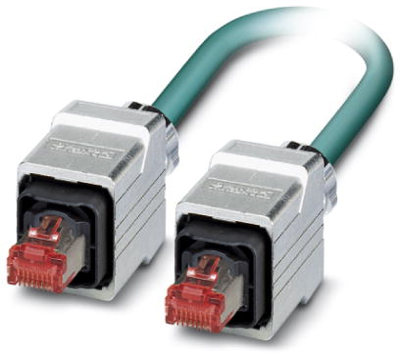

Network cable, 1408963, Phoenix Contact
Assembled Ethernet cable, shielded, 4-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67 push/pull metal housing to RJ45 plug/IP67 push/pull metal housing, line, length: 10 m.
Features
- Compact angle
- PVC cable for flexible installations
- Secure connection and disconnection with reliable locking clip protection
- Ideal EMC properties, thanks to 360° shielding
- Resistant to shock and vibrations, thanks to robust molding
- High-speed data transmission with up to 1 Gbps
- Simultaneous power transmission with PoE++
- Perfect for industrial applications
Technical specifications
| Anschluss (1) | RJ45-Stecker, gerade | |
| Anschluss (2) | RJ45-Stecker, gerade | |
| Ausführung | Netzwerkkabel | |
| AWG-Leiterquerschnitt | AWG 26-7 | |
| Farbe | blau | |
| Halogenfrei | Yes | |
| Kabel | SF/UTP | |
| Kabellänge | 10 m | |
| Kategorie | Cat 5 | |
| Material | PUR | |
| Pinbelegung | 1:1 | |
| Rasthebelschutz vorhanden | Yes | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85444210 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
