1412820 | Phoenix Contact

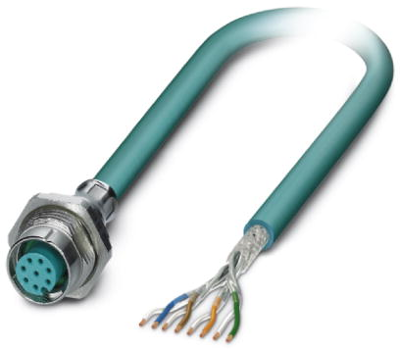

Network cable, M12 socket, straight to open end, Cat 5, S/UTP, PUR, 2 m, blue, 1412820
Unit Price (€ / pc.)
74.5654 € *
Available: 0 pcs.
Available in 10 days: 3 pcs.
Leadtime: 1 Week **
Device connector, 1412820, Phoenix Contact
Device connector, rear mounting, Ethernet, 8-position, PUR, water blue RAL 5021, Flush-type female connector straight M12, coding: A SPEEDCON / IP67, on free cable end, cable length: 2 m.
Features
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Connection (1) | M12 socket, straight | |
| Connection (2) | open end | |
| Version | network cable | |
| AWG cross-section | AWG 26-19 | |
| Colour | blue | |
| Halogen free | Yes | |
| Cable type | S/UTP | |
| Cable length | 2 m | |
| Category | Cat 5 | |
| Material | PUR | |
| Pin configuration | 1:1 | |
| Detent lever protection available | No | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
