1424164 | Phoenix Contact

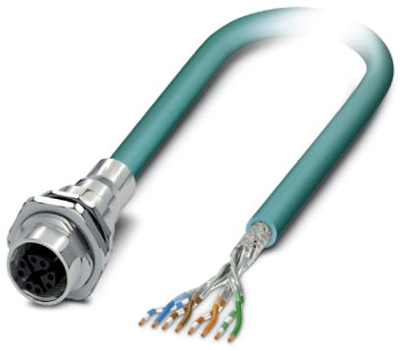

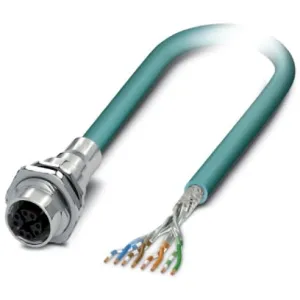

Network cable, M12 socket, straight to open end, Cat 6A, S/FTP, PUR, 5 m, blue, 1424164
Unit Price (€ / pc.)
67.0089 € *
Available: 0 pcs.
Available in 10 days: 1 pcs.
Leadtime: 1 Week **
Device connector, 1424164, Phoenix Contact
Device connector, rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, M16 x 1.5, Bus line, cable length: 5 m, Ethernet 10 Gbit.
Features
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Anschluss (1) | M12-Buchse, gerade | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Netzwerkkabel | |
| AWG-Leiterquerschnitt | AWG 26-7 | |
| Farbe | blau | |
| Halogenfrei | Yes | |
| Kabel | S/FTP | |
| Kabellänge | 5 m | |
| Kategorie | Cat 6A | |
| Material | PUR | |
| Pinbelegung | 1:1 | |
| Rasthebelschutz vorhanden | No | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
