1011107 | Phoenix Contact

Pin header, 6 pole, pitch 3.5 mm, angled, black, 1011107

Order No.: 65P0402
EAN: 4055626485034
MPN:
1011107
MC 1,5/ 6-G-3,5 P26 THRR44
Series: COMBICON MC 1,5

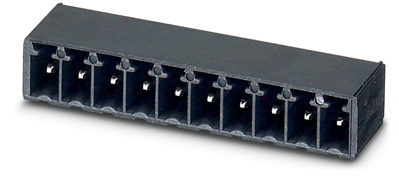

1011107 Phoenix Contact PCB Connection Systems Image 1

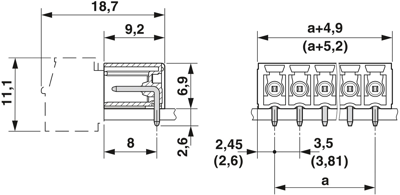

1011107 Phoenix Contact PCB Connection Systems Image 2

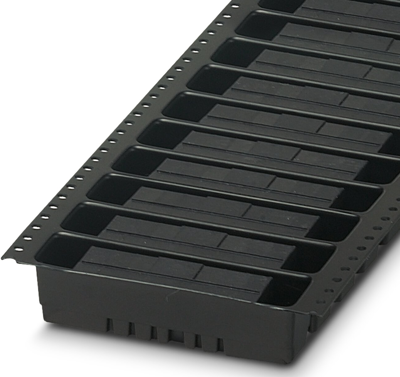

1011107 Phoenix Contact PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.666 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
549.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
330 pcs.
1.666 €

Feed-through header, 1011107, Phoenix Contact

PCB header, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 6, Number of rows: 1, Number of positions per row: 6, number of connections: 6, product range: MC 1,5/..-G-THR, pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, plug-in system: MINI COMBICON, Locking: without, type of packaging: 44 mm wide tape

Features

  • Designed for integration into the SMT soldering process
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Anschluss Lötanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 160 V
Nennstrom 8 A
Orientierung abgewinkelt
Polzahl 6-polig
Rastermaß 3.5 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
