1054546 | Phoenix Contact

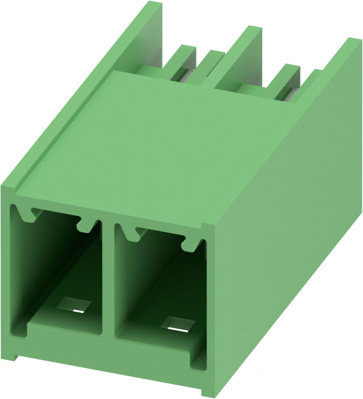

Pin header, 2 pole, pitch 7.62 mm, angled, green, 1054546
Unit Price (€ / pc.)
2.1182 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
PCB header, 1054546, Phoenix Contact
PCB header, nominal cross section: 6 mm², color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PC 6/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 6, Pin connector pattern alignment: Standard, locking: without, mounting: without.
Features
- Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
- Easy PCB replacement thanks to plug-in modules
- Well-known mounting principle allows worldwide use
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Colour | grün | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 630 V | |
| Rated current | 41 A | |
| Orientation | abgewinkelt | |
| Pin number | 2-polig | |
| Grid | 7.62 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
