1084020 | Phoenix Contact

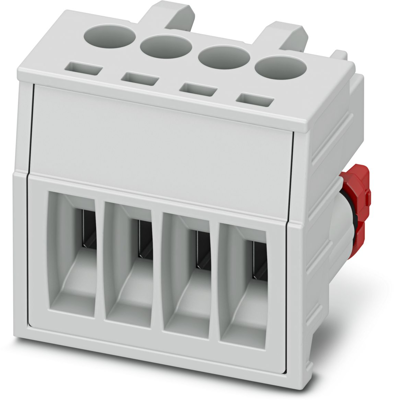

Socket, 4 pole, pitch 3.5 mm, straight, gray, 1084020
Unit Price (€ / pc.)
5.4264 € *
Available: 0 pcs.
Available in 10 days: 880 pcs.
Leadtime: 2 Weeks **
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4264 €
10 pcs.
4.6291 €
50 pcs.
4.3792 €
100 pcs.
4.2245 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connector, 1084020, Phoenix Contact
PCB connector, nominal cross section: 1.5 mm², color: light gray, nominal current: 8 A, rated voltage (III/2): 150 V, contact surface: Sn, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: ICC..-PSC1,5/..-3,5, pitch: 3.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: ICC 1,5, locking: without, mounting method: without, type of packaging: packed in cardboard.
Features
- Variable coding, for reliable protection against incorrect connection
- Quick and easily coded when initially connecting the connector and header
- High packing density with 3.5 mm pitch
Technical specifications
| Connection | Schraubanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Colour | grau | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 3.5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
