1107239 | Phoenix Contact

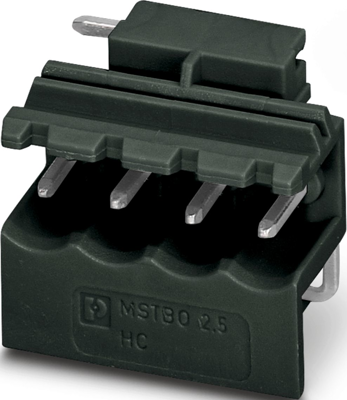

PCB base strip, 4 pole, pitch 5 mm, angled, blue-gray, 1107239

Order No.: 64P2614
EAN: 4063151330804
MPN:
1107239
Series: MSTBO 2,5
1107239 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
2.6894 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,344.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
2.6894 €

PCB header, 1107239, Phoenix Contact

PCB header, Nominal cross section: 2.5 mm², Color: black, Nominal current: 12 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of rows: 1, Number of positions: 4, Product range: MSTBO 2,5/..-G1L, Pitch: 5 mm, Mounting: Wave soldering, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Fixed coding of the positions: 3, 4, item with lateral pin outlet on the left.

Features

  • Plug-in direction orthogonal to the PCB
Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 1
Ausführung Stiftleiste
Farbe blaugrau
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 320 V
Nennstrom 12 A
Orientierung abgewinkelt
Polzahl 4-polig
Rastermaß 5 mm
Verriegelung Nein
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
