1168975 | Phoenix Contact

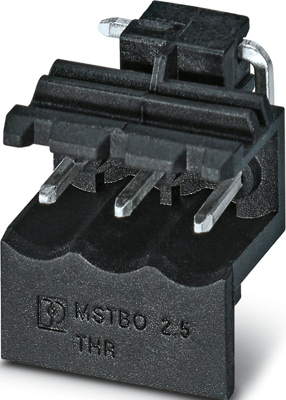

PCB base strip, 3 pole, pitch 5 mm, angled, black, 1168975
Unit Price (€ / pc.)
3.0583 € *
Available: 0 pcs.
Available in 10 days: 2,210 pcs.
Leadtime: 2 Weeks **
Total Price:
3.06 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0583 €
10 pcs.
2.8084 €
50 pcs.
2.5585 €
100 pcs.
2.2967 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB header, 1168975, Phoenix Contact
PCB header, Nominal cross section: 2.5 mm², Color: black, Nominal current: 16 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of rows: 1, Number of positions: 3, Product range: MSTBO 2,5/..-G1L-THR, Pitch: 5 mm, Mounting: THR soldering, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Fixed coding of the positions: 1, 3, item with lateral pin outlet on the left.
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Orientation | abgewinkelt | |
| Pin number | 3-polig | |
| Grid | 5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
