1269183 | Phoenix Contact

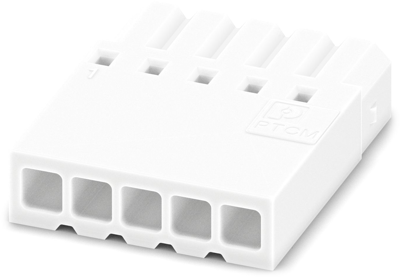

Socket header, 5 pole, pitch 2.5 mm, straight, white, 1269183
Unit Price (€ / pc.)
0.714 € *
Available: 0 pcs.
Available in 10 days: 600 pcs.
Leadtime: 2 Weeks **
PCB connector, 1269183, Phoenix Contact
PCB connector, nominal cross section: 0.75 mm², color: white, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of rows: 1, number of positions: 5, product range: PTCM 0,5/..-P, pitch: 2.5 mm, connection method: Crimp connection, plug-in system: COMBICON PTSM.
Features
- White design: Stable color when welding and during use
- High current carrying capacity of 6 A in very compact dimensions
- Cost-effective connection of crimped conductors in large quantities
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Colour | weiß | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 160 V | |
| Rated current | 6 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 2.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
