1337138 | Phoenix Contact

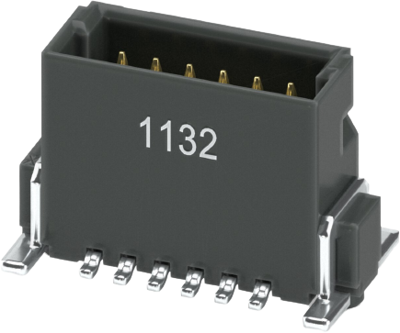

Male connector, 12 pole, pitch 1.27 mm, straight, 1337138
Unit Price (€ / pc.)
1.8564 € *
Available: 217 pcs.
Leadtime: 3 Weeks **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.7136 €
50 pcs.
1.5589 €
100 pcs.
1.4042 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD male connector, 1337138, Phoenix Contact
SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 12, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.
Features
- The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
- Time savings during the development process with customer-specific simulations for data integrity
- Gold-plated contact points enable long-term stable signal transmission
Technical specifications
| Connection | Lötstift | |
| Number of rows | 2 | |
| Version | Messerleiste | |
| Additional parts | bestückt | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated current | 2.2 A | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Grid | 1.27 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
