1341136 | Phoenix Contact

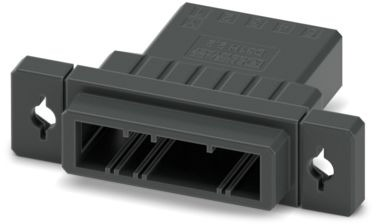

Pin header, 5 pole, pitch 3.81 mm, straight, black, 1341136
Unit Price (€ / pc.)
0.714 € *
Available: 0 pcs.
Leadtime: On Request **
Feed-through plug, 1341136, Phoenix Contact
Feed-through connector, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact connection type: Pin, number of rows: 1, number of positions: 5, product range: D31H 2,2/..-PT, pitch: 3.81 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS D, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Engagement nose.
Features
- Cost-effective connection of crimped conductors in large quantities
- Small component size for applications where space is at a premium
- Intuitive locking mechanism prevents accidental disconnection
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Nennspannung | 160 V | |
| Nennstrom | 8 A | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Rastermaß | 3.81 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
