1341142 | Phoenix Contact

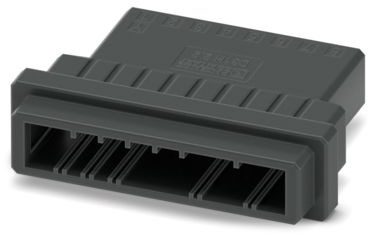

Pin header, 8 pole, pitch 3.81 mm, straight, black, 1341142
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
PCB connector, 1341142, Phoenix Contact
PCB connector, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact connection type: Pin, number of rows: 1, number of positions: 8, product range: D31H 2,2/..-FH, pitch: 3.81 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS D, locking: Snap-in locking, mounting: Engagement nose.
Features
- Cost-effective connection of crimped conductors in large quantities
- Small component size for applications where space is at a premium
- Intuitive locking mechanism prevents accidental disconnection
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| Rated voltage | 160 V | |
| Rated current | 8 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 3.81 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
