1378208 | Phoenix Contact

Pin header, 6 pole, pitch 5.08 mm, straight, black, 1378208

Order No.: 63P4513
EAN: 4063151745653
MPN:
1378208
DD32H 2,2/ 6-FH-5,08-XY
Series: CONNEXIS
1378208 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.0587 €

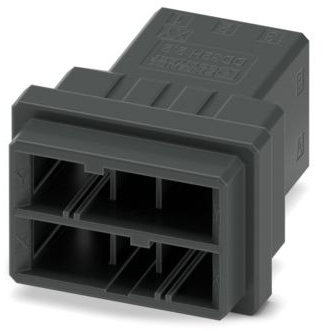

PCB connector, 1378208, Phoenix Contact

PCB connector, color: black, nominal current: 8 A, rated voltage (III/2): 320 V, contact connection type: Pin, number of rows: 2, number of positions: 6, product range: DD32H 2,2/..-FH, pitch: 5.08 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS DD, locking: Snap-in locking, mounting: Engagement nose.

Features

  • Cost-effective connection of crimped conductors in large quantities
  • Small component size for applications where space is at a premium
  • Intuitive locking mechanism prevents accidental disconnection
Technical specifications
Connection Crimpanschluss
Number of rows 2
Version Stiftleiste
Colour schwarz
Contact type Stift
Rated voltage 320 V
Rated current 8 A
Orientation gerade
Pin number 6-polig
Grid 5.08 mm
Type of locking Ja
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
