1392180 | Phoenix Contact

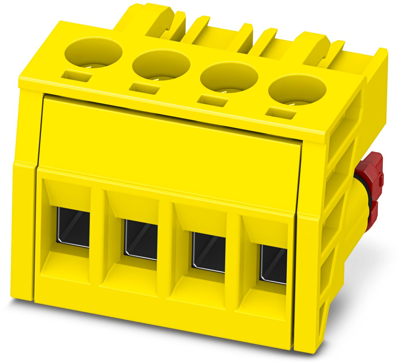

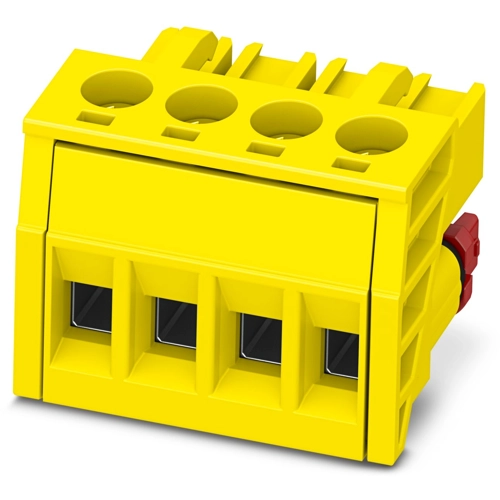

Socket, 4 pole, pitch 5 mm, straight, yellow, 1392180
Unit Price (€ / pc.)
9.3296 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.33 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3296 €
10 pcs.
7.9849 €
50 pcs.
7.5446 €
100 pcs.
7.2590 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connector, 1392180, Phoenix Contact
PCB connector, nominal cross section: 2.5 mm², color: yellow, nominal current: 16 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: ICC..-PSC2,5/..-5,0, pitch: 5 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: ICC 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard, Printed version.
Features
- Variable coding, for reliable protection against incorrect connection
- Quick and easily coded when initially connecting the connector and header
- Internationally recognized and proven screw connection
Technical specifications
| Connection | Schraubanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Colour | gelb | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
