1433101 | Phoenix Contact

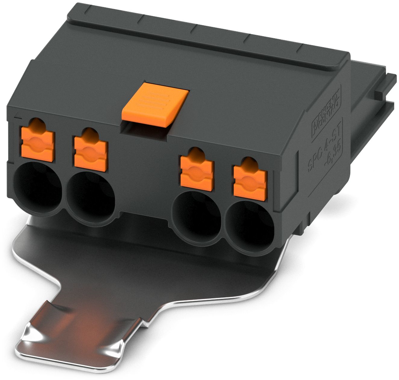

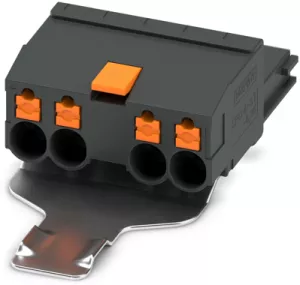

PCB connector, 5 pole, pitch 6.35 mm, straight, black, 1433101
Unit Price (€ / pc.)
13.7207 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
13.72 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7207 €
10 pcs.
12.6259 €
50 pcs.
11.4835 €
100 pcs.
10.3411 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connector, 1433101, Phoenix Contact
PCB connector, Nominal cross section: 4 mm², Color: black, Nominal current: 24 A, Rated voltage (III/2): 1000 V, Contact surface: Sn, Contact connection type: Socket, Number of rows: 1, Number of positions: 5, Product range: SPC 4/..-STL-SH, Pitch: 6.35 mm, Connection method: Push-in spring connection, Conductor/PCB connection direction: 0 °, Locking clip: - without locking clip, Plug-in system: COMBICON PC 4, Electrical properties: shielded, Locking: Snap-in locking, Mounting: Latching flange.
Features
- Intuitive locking mechanism prevents accidental disconnection
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Optimized for tight installation situations: operation and conductor connection from one direction
Technical specifications
| Connection | Push-in Federanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 1 kV | |
| Rated current | 24 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 6.35 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
