1500438 | Phoenix Contact

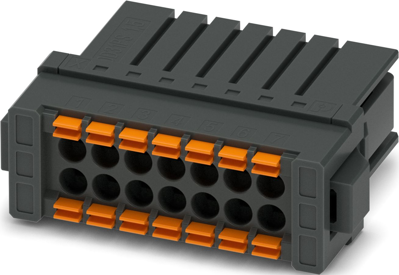

PCB connector, 14 pole, pitch 3.81 mm, straight, black, 1500438
Unit Price (€ / pc.)
8.0920 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
8.09 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0920 €
10 pcs.
7.5208 €
50 pcs.
6.9139 €
100 pcs.
6.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connector, 1500438, Phoenix Contact
PCB connector, Color: black, Nominal current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Sn, Contact connection type: Socket, Number of rows: 2, Number of positions: 14, Product range: DD31PS 1,5/.., Pitch: 3.81 mm, Connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Locking clip: - without Locking clip, plug-in system: CONNEXIS DD, Locking: Snap-in Locking, Mounting: Latching flange.
Features
- Time saving push-in connection, tools not required
- Intuitive operation due to color-coded actuating push button
- Operation and conductor connection from one direction enable integration into front of device
- Contacts arranged in a double row enable high packing density in a compact area
- Intuitive locking mechanism prevents accidental disconnection
Technical specifications
| Connection | Push-in Federanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 160 V | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 14-polig | |
| Grid | 3.81 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
