1500458 | Phoenix Contact

PCB connector, 16 pole, pitch 3.81 mm, straight, black, 1500458

Order No.: 63P4768
EAN: 4063151957025
MPN:
1500458
Series: CONNEXIS
Phoenix Contact
1500458 Phoenix Contact PCB Connection Systems

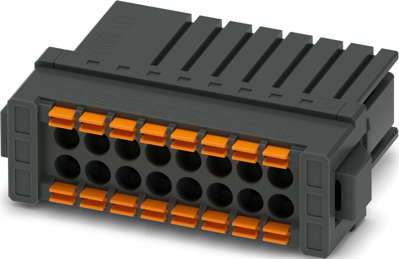

Image may differ
Unit Price (€ / pc.)
9.1035 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
9.10 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1035 €
10 pcs.
8.4728 €
50 pcs.
7.7945 €
100 pcs.
7.0924 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB connector, 1500458, Phoenix Contact

PCB connector, Color: black, Nominal current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Sn, Contact connection type: Socket, Number of rows: 2, Number of positions: 16, Product range: DD31PS 1,5/.., Pitch: 3.81 mm, Connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Locking clip: - without Locking clip, plug-in system: CONNEXIS DD, Locking: Snap-in Locking, Mounting: Latching flange.

Features

  • Time saving push-in connection, tools not required
  • Intuitive operation due to color-coded actuating push button
  • Operation and conductor connection from one direction enable integration into front of device
  • Contacts arranged in a double row enable high packing density in a compact area
  • Intuitive locking mechanism prevents accidental disconnection
Technical specifications
Connection push-in spring connection
Connection plating tin-plated
Number of rows 2
Version socket header
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Pin number 16 pole
Grid 3.81 mm
Type of locking Yes
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
