1716948 | Phoenix Contact

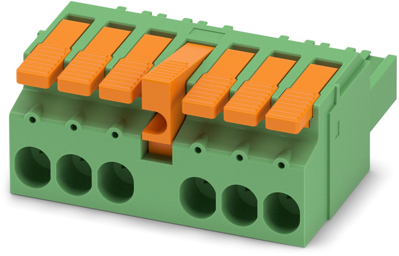

PCB connector, 1716948, Phoenix Contact

PCB connector, Nominal cross section: 6 mm2, Color: green, Nominal current: 41 A, Rated voltage (III/2): 1000 V, Contact surface: Tin, Contact connection type: Socket, Number of potentials: 6, Number of rows: 1, Number of positions: 6, Number of connections: 6, Product range: LPC 6/..-STL, Pitch: 7.62 mm, Connection method: Lever Push-in connection, Conductor/PCB connection direction: 0 °, Locking clip: - without locking clip, Plug-in system: COMBICON PC 6, Locking: Snap-in locking, Mounting: Self-locking flange.

Features

• Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
• Clear lever positions provide reliable feedback on opened or closed clamping spaces
• Increased touch protection in accordance with IEC/UL 61800-5-1
• Time-saving push-in connection when lever is closed
• Intuitive locking mechanism prevents accidental disconnection
• Defined contact force ensures that contact remains stable over the long term
