1757093 | Phoenix Contact
Socket header, 10 pole, pitch 5.08 mm, straight, green, 1757093
Unit Price (€ / pc.)
7.4851 € *
Available: 30 pcs.
Available in 10 days: 2,983 pcs.
Leadtime: 2 Weeks **
Total Price:
7.49 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4851 €
10 pcs.
6.5807 €
50 pcs.
6.1404 €
*incl. VAT plus shipping costs
**Subject to prior sale

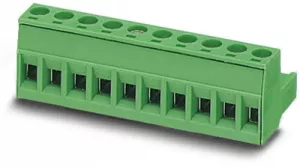

PCB Connector, 1757093, PHOENIX
PCB plug, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 10, grid spacing: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.
Technical specifications
| Connection | screw connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | green | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Grid | 5.08 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
