1792854 | Phoenix Contact

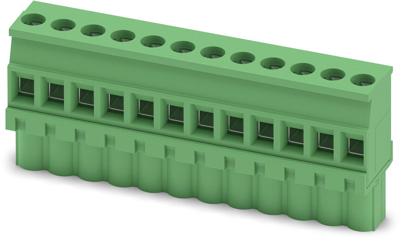

Socket header, 12 pole, pitch 5.08 mm, straight, green, 1792854

Order No.: 63P7270
EAN: 4017918045289
MPN:
1792854
MVSTBW 2,5/12-ST-5,08
Series: MVSTBW
1792854 Phoenix Contact PCB Connection Systems Image 1
1792854 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
10.7457 € *
Available: 20 pcs.
Available in 10 days: 1,843 pcs.
Leadtime: 2 Weeks **
Total Price:
10.75 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7457 €
10 pcs.
9.8889 €
50 pcs.
8.9964 €
100 pcs.
8.0920 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connector, 1792854, PHOENIX

PCB plug, rated current: 12 A, rated voltage (III/2): 320 V, number of poles: 12, grid dimension: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Connection Schraubanschluss
Connection plating verzinnt
Number of rows 1
Version Buchsenleiste
Additional parts bestückt
Colour grün
Contact type Buchse
contact surface verzinnt
Rated voltage 320 V
Rated current 12 A
Orientation gerade
Pin number 12-polig
Grid 5.08 mm
Type of locking Nein
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
